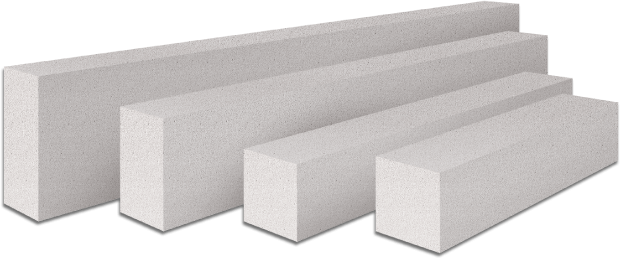

STÄRKEN AAC LINTEL BEAM

STÄRKEN AAC Lintel Beams are also used as spreaders under the end supports of reinforced concrete beams to distribute high bearing stresses into the supporting AAC wall.

STÄRKEN AAC LINTEL BEAM

STÄRKEN AAC Lintel Beams are also used as spreaders under the end supports of reinforced concrete beams to distribute high bearing stresses into the supporting AAC wall.

Packaging

Window Opening Width (mm)	Lintel Length (mm)	Lintel Height (mm)	Lintel Thickness (mm)
900	1,200	200	100, 125, 150, 175, 200
1,200	1,600	200	100, 125, 150, 175, 200
1,600	1,900	200	100, 125, 150, 175, 200
1,800	2,200	300	100, 125, 150, 175, 200
2,100	2,700	300	100, 125, 150, 175, 200

Note :
1. The above information may subject to change.
2. Do not use the above information for calculating the transportation weight and volume.

Applications:

Stärken AAC Lintels are reinforced elements similar to panels. They are used as support over windows, doorways and other openings.

Working Dimension:

Lintels are available in standard block thickness of 100mm, 125mm, 150mm and 200m and lengths up to 2,700mm.

Properties:

Modulus of Elasticity
2,190 MPa

Compressive Strength: 3.5 MPa

Thermal Conductivity: 0.172 W/m.K

Density: Dry 550 kg/m³
Working Density: 780 – 820 kg/m³
